3-Port HDMI on Dual UTP Extender


Additional information

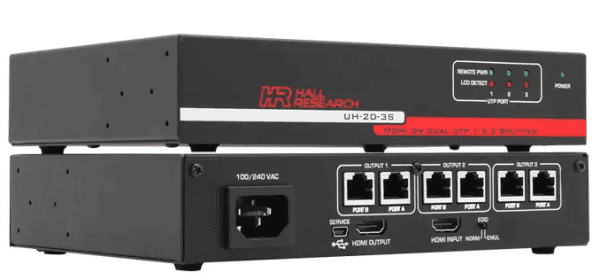

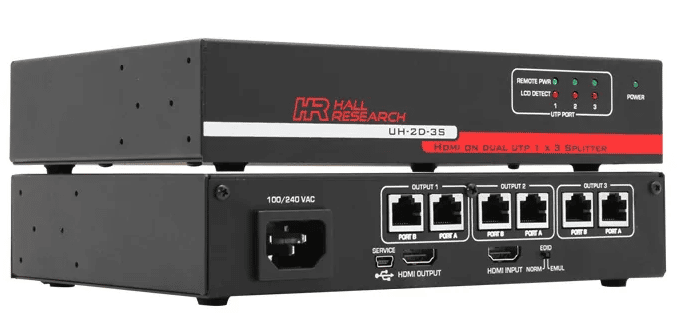

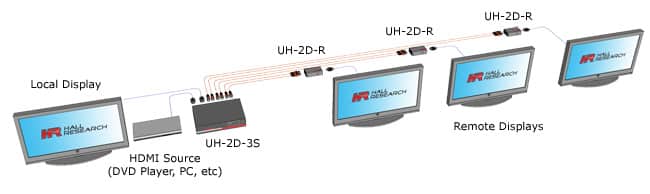

Hall Research’s Model UH-2D-3S is a member of the Mini-CAT® video extension and distribution product line. The UH-2D-3S is used to extend HDMI™  or DVI video up to 130 ft @ 1080p or 170 ft @ 1080i/720p resolution on 2 Cat6 cables to 3 remote receivers (Model UH-2D-R). The unit provides one local HDMI output and 3 sets of RJ45 pairs for connection to the remote receivers. Cables that are of lower quality and construction will reduce the maximum distance.

The UH-2D-3S is compatible with HDMITM versions 1.2a, 1.3 and 1.4 in terms of 3D, deep-color, and 4K video support. The remote receiver (UH-2D-R) includes state of the art
automatic equalization to compensate for signal losses in the cables and produces a crisp
image as clear as the original. This allows daisy-chaining (to achieve further extension), and produces a crisp image as clear as the original.

The unit is housed in a compact sturdy metal enclosure that is 1RU high. Two can be
mounted side-by-side using Hall Research Model RMS-1U-1A rack shelf (UH-2D-3S has
threaded holes on the bottom for this purpose), or a single unit can be mounted using the
Model RMK-05 Rack Mount Kit.

EDID Management

The UH-2D-3S uses and intelligent method to report the EDID to the source. Understanding how this done can help certain installations where the 4 outputs may be connected to different LCD’s.
Since the unit supports HDMI with HDCP, priority is given to the outputs connected to HDTV rather than DVI LCD’s. Though the unit can split a DVI source for 4 DVI LCD displays (with DVI to HDMI cables or adapters), it is not recommended to connect the input in that situation to an HDMI source such as a Blu-ray player, since the DVI LCD’s will not support the video anyhow as most DVI LCD’s are 4×3 format, do not support HDCP, and cannot handle embedded HDMI audio.


  • Compact unit sends uncompressed HDMI video to 3 remote displays on 2 Cat6 cables
  • Can drive cables to 130ft @ 1080p or 170 ft @ 1080i/720p on 2 Cat6 cables
  • Local HDMI output for direct connection to a local display
  • Built-in power supply with standard IEC320 AC power jack
  • Supports HDMI 1.4 Deep-Color (up to 12 bits per color) and 3D formats
  • Supports PC & HDTV resolutions, VGA~WUXGA and 480p~4Kx2K
  • LED indicators for power and status of 3 remotes (power and HPD detection)
  • Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
  • Includes HDMI input cable
  • 1 RU, half-wide compact size with optional mounting tray and ears
  • Supports DVI-D single link extension with optional adapter cables
  • Intelligent EDID Pass-through or EDID Emulation (user selectable)
  • Low power (consumes less than 6 watts fully loaded)
Input Port 1x HDMI Female (Type A)
Output Ports 1x HDMI Female (Type A), 3 sets of 2 RJ45 connectors (total of 6 RJ45)
Power Supply Internal 90-260 VAC, 50-60 Hz, with IEC320/C14 AC power jack
Actual power consumption: 3.5 ~ 6 watts depending on # outputs plugged in
at 1080p
Video Resolutions PC Resolutions : VGA – SVGA – XGA – SXGA – UXGA -WUXGA
HDTV Resolutions : 480i – 480p – 720p – 1080i – 1080p, 4Kx2K@30
Bandwidth 10.2 Gbps total (or 3.4 Gbps per color, or 340 MHz TMDS clock)
Video Standards HDMI 1.4 (for 3D, Deep-Colour & 4K), HDCP1.1 and DVI1.0
Audio Formats All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and
DTS-HD Master Audio (32-192kHz sample rate)
Max UTP Cable Length Using 23 Gauge Cat6:

480i, 480p, 576i, 576p, 720p, 1080i — 170 ft (52 m)
1080p @ 60 Hz 8 bit per colour (24 bit) — 130 ft (40 m)
1080p deep-colour 12 per colour (36 bit) — 80 ft (25 m)
4Kx2K — 40 ft (12 m)

Temperature/humidity Storage: -40 to +185 °F (-40 to +85°C) / 10% to 90%, non-condensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-condensing
Mounting Threaded nuts on bottom for rack-shelf mounting or optional rack ears
Enclosure type Metal
Dimensions 1.66″ H x 8.42″ W x 6.04″ D
(42mm H x 214mm W x 154mm D)
Product weight Product – 2.5 lbs (0.386kg)
Shipping – 3 lbs (0.681 kg)
MTBF 90,000 hours (Estimate)
Warranty 2 years parts and labor
