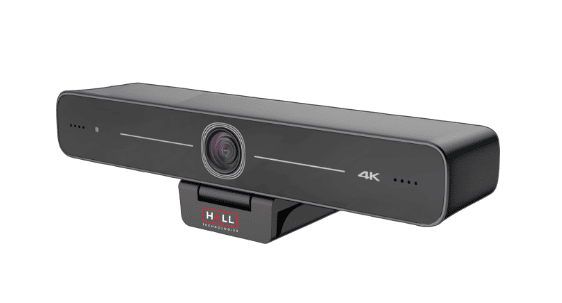

Auto Framing 4K EPTZ Camera


Additional information


HT-CAM-4K-EPTZ is a 4K ultra-high-definition EPTZ camera with a new design. With AI intelligence, it can frame according to the number of people in the scene, and the characters are in the middle. It has perfect functions and superior performance, which employs advanced ISP processing algorithms so as to provide vivid images with evenly clear brightness, strong colour layering, high resolution, and fantastic colour rendition. Easy and convenient to install and maintain, stable and reliable.


  • Ultra HD 4K Resolution: 1/2.8 inch high quality CMOS sensor. Resolution is up to 4K with frame rate up to 30fps (MJPG) or 30fps (H.264); compatible with 1080P and 720P.
  • EPTZ: EPTZ and 10X digital Zoom;
  • Built-in MIC: Built-in two omni-directional MIC pickups; with unique noise suppression algorithm, effective pickup distance up to 6 meters.
  • Auto Framing: Employing superior face detection algorithm to intelligently and automatically frames according to the number of people in the scene, and the characters are in the middle
  • Wide FOV: 100° wide angle and small distortion lens.
  • Video output interface: Video output interface USB 3.0;
  • Multiple Audio/Video Compression Standard: Supports H.264, MJPG, YUY2, NV12 video compression, to made video play smoothly.
  • Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. Even in the case of ultra-low illumination, the picture remains clean and clear.

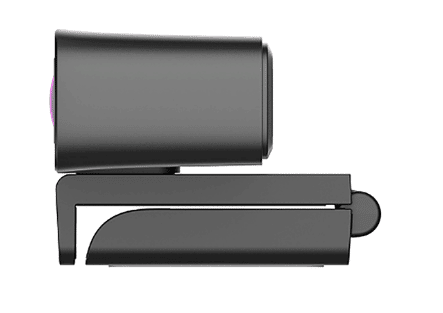

  • Multiple Installations: Standard equipped with mold clamp. Easy to install on any devices, such as LCD screen,
    laptop, table and tripod.
  • Easy to Use: No need to download driver; USB 3.0 Plug and play;
  • Wide Applications: Personal video conferencing, enterprise video conferencing, collaboration meeting, etc.
Sensor 1/2.8-inch-high quality 4K CMOS sensor
Effective Pixels 8.28MP, 16:9

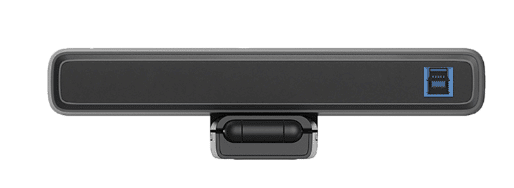

Video Interface 1 Channel USB 3.0 output, Type B; Support audio signal output
Audio input 2*Built-in MIC pickup
Video Format MJPG:3840*2160@30 /2560*1440@30 /1920*1080@30 /1600*896@30 /1280*720@30 /1024*576@30 /960*540@30 /800*600@30 /800*448@30 /720*576@30/ 720*480@30 /640*480@30 /640*360@30 /480*270@30 /352*288@30 /320*240@30 H264:3840*2160@30 /2560*1440@30 /1920*1080@30 /1600*896@30 /1280*720@30 /1024*576@30 /960*540@30 /800*600@30 /800*448@30 /720*576@30/ 720*480@30 /640*480@30 /640*360@30 /480*270@30 /352*288@30 /320*240@30 YUY2:1920*1080@30 /1280*720@30 /1024*576@30 /800*600@30 /800*448@30 /640*480@30 /640*360@30 /480*270@30 /320*180@30 NV12:1920*1080@15 /1280*720@30 /1024*576@30 /800*600@30 /800*448@30 /640*480@30 /640*360@30 /480*270@30 /320*180@30
View Angle 115°(D)/100°(H)/56°(V)
Focal Length f=2.26mm
Aperture F1.8±5%
Digital Zoom 10X
Minimum Illumination 0.1Lux (F1.8, AGC ON)
White Balance Auto / Manual
Focus Manual
Exposure Auto / Manual
BLC On/Off
SNR ≥50dB
Operation Systems Windows 7(1080p or lower), Windows 8.1, Windows 10 ; macOS™ 10.10 or higher; Android ; Linux (UVC support)
Video Compression Format YUY2, NV12, MJPG, H264
USB Audio Support
USB Communication Protocol UVC, UAC
PTZ Control Support EPTZ
Hardware Requirement 2.4 GHz Intel@ Core 2 Duo or higher,2GB or higher, USB 3.0 port (USB 3.0 for 4K)
Input Voltage 5V
Input Current 1A(max)
Power Consumption 5W(max)
Stored Temperature -10℃~+60℃
Stored Humidity 20%~90%
Working Temperature -10℃~+50℃
Working Humidity 20%~80%
Dimension 180mm×42.5mm×46.3mm
Weight Around 0.3kg
Working Environment Indoor
Accessory User Manual, USB 3.0 cable
