HDMI 2.0 Extender with Loop out

Category: Tag:

Additional information

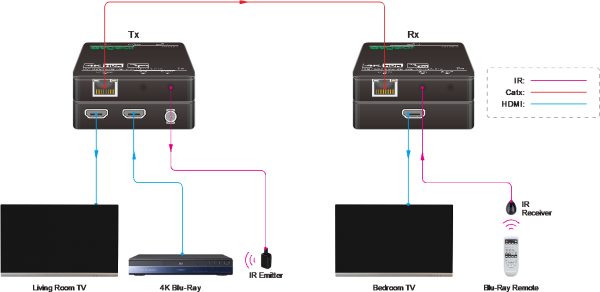

The HD70L is a cost-effective point-to-point extender set for HDMI 2.0 and IR signals; this kit supports 4K/UHD video @ 60 Hz with 4:4:4 Chroma sampling, as well as HDMI data rates up to 18Gbps, HDCP 2.2 compliant.


  • Supports HDMI 2.0, up to 4K@60Hz 4:4:4, HDR 10, 18G, HDCP 2.2.
  • Extends 4K or 1080p HDMI signal up to 70 meters over a single CAT5e/6 cable.
  • HDMI loop out on transmitter.
  • Bi-directional IR pass-through.
  • Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output on receiver for compatibility with legacy 1080p display device.
  • Features visually lossless compression with no latency.
  • EDID pass-through.
  • Compact design, easy to install and simple to operate.

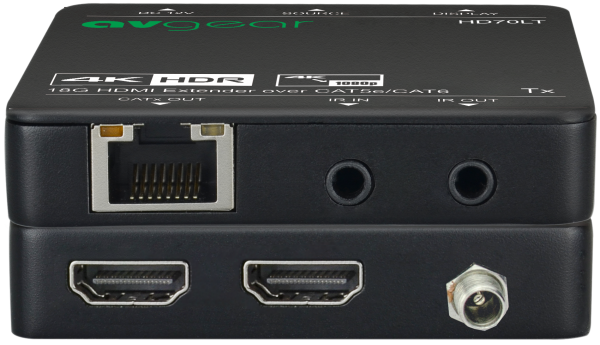

Input (1) SOURCE
Input Connector (1) 19-pin type-A female HDMI
Output (1) DISPLAY, (1) CATx OUT
Output Connector (1) 19-pin type-A female HDMI, (1) RJ45
Control (1) IR IN, (1) IR OUT
Control Connector (2) 3.5mm mini jacks

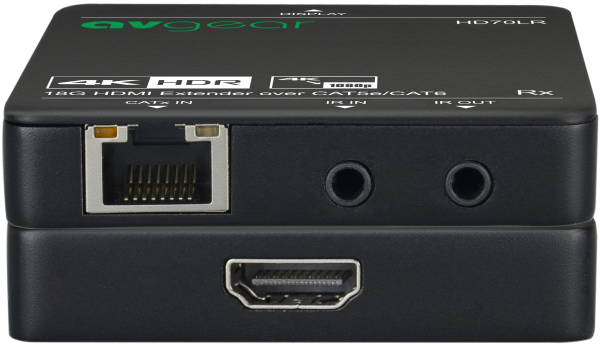

Input (1) CATx IN
Input Connector (1) RJ45
Output (1) DISPLAY
Output Connector (1) 19-pin type-A female HDMI
Control (1) IR IN, (1) IR OUT
Control Connector (2) 3.5mm mini jacks
Video Resolution Up to 4K@60Hz 4:4:4, HDR 10
HDMI Audio Format Supports LPCM 2ch, LPCM 5.1ch, LPCM 7.1ch, Dolby Digital 2ch, Dolby Digital 5.1ch, DTS 2ch, DTS 5.1ch, DTS 96/24 5.1ch.
Transmission Distance 4K/1080p ≤ 70 meters
HDMI Version HDMI V2.0
HDCP Version HDCP 2.2 compliant. (The HDCP of output follows the HDCP version of display device.)
EDID Supports EDID Pass-through
Power Supply Input: 100VAC~240VAC, 50/60Hz;Output: 12VDC 1A
Power Consumption 4W (Max)
Operation Temperature -5~55℃
Storage Temperature -25~70℃
Relative Humidity 10%-90%
Dimensions (W*H*D) 80mm x 16.8mm x 80mm
Net Weight Tx/Rx: 70g
